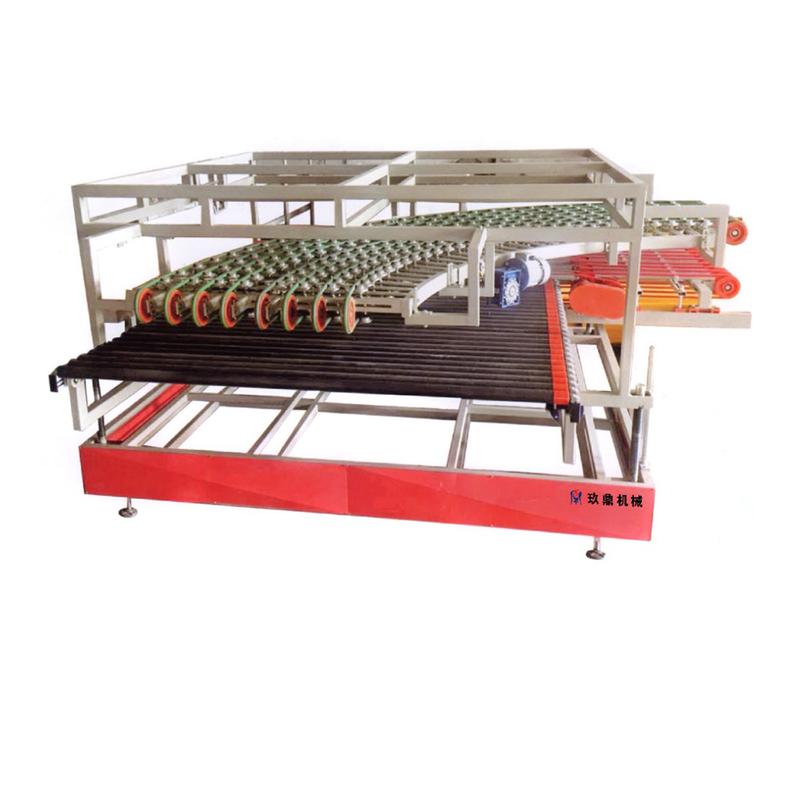

The double-layer turning conveyor is designed for high-efficiency tile production lines. Its dual-level structure enables continuous tile turning and分流 (diverting), optimizing production rhythm and saving floor space. Ideal for intelligent conveying of large-format tiles (e.g., 800x1600mm and above).
◆ Dual-level Synchronization: Independently driven upper/lower layers with adjustable speed for seamless integration.
◆ Smart Turning Control: PLC + HMI system ensures 90°/180° turning with ≤1mm deviation.
◆ Auto-correction: Edge-detection sensors automatically adjust tile misalignment.
◆ Low Friction Design: Wear-resistant ceramic rollers/belts minimize tile surface scratches.
Advantage | Description |
High Space Efficiency | Dual-level design saves 50% horizontal space, ideal for compact factories. |
Enhanced Productivity | Continuous turning eliminates pauses, increasing output by ≥20%. |
Low Maintenance Cost | Modular design allows fast replacement of wear-prone parts. |
High Compatibility | Compatible with glazing, polishing, packaging lines, and other processes. |
Parameter | Value |
Tile Size | 600x1200mm ~ 1600x3200mm |
Load Capacity | Single-layer Max. 100kg / Double-layer Max. 200kg |
Turning Radius | 1500mm（Customizable） |
Speed | 0-20m/min（Variable Frequency） |
◆ Glazing Line Turning: Links glazing and drying kilns without manual handling.
◆ Pre-packaging Sorting: Diverts tiles to different packaging lines by size.
