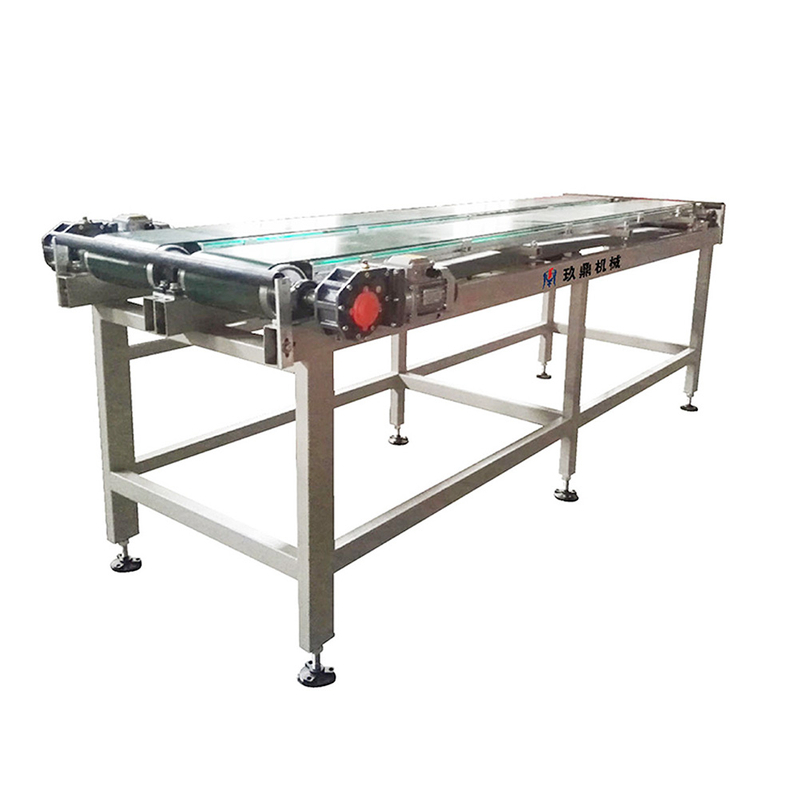

The flat belt turner is a specialized directional adjustment equipment in tile production lines. Utilizing high-strength flat belt conveying system, it achieves 180° precise tile turning, suitable for polishing, sorting, packaging and other critical processes.
◆ Non-marking Turning : Gentle belt-tile contact (10-50N adjustable pressure)
◆ Dual-speed Control : Acceleration-constant speed-deceleration phases (±1mm accuracy)
◆ Auto-centering : Photoelectric sensor + mechanical guide for misalignment correction
◆ Quick Belt Change : <15min replacement (with standard tensioning device)
Parameter | Standard | Large-size |
Tile Size | 800×800mm to 1200×2400mm | 1200×2400mm to 1600×3200mm |
Max Load | 80kg/m² | 120kg/m² |
Turning Cycle | 6-15s adjustable | 8-20s adjustable |
Belt Speed | 0.5-2m/s | 0.3-1.5m/s |
Motor Power | 4kW | 5.5kW |
40% less tile breakage vs roller-type turners
Compatible with vision inspection systems (optional QR code reader)
Modular design allows dual-belt synchronous turning system
◆ Anti-static Belt : Surface resistance 10⁶-10⁹Ω (for high-gloss tiles)
◆ Cleaning System : Brush + vacuum cleaner integration
◆ Energy-saving Mode : <0.5kW standby power (auto start/stop)
Note : Custom belt materials available (food-grade silicone/wear-resistant PU)
The flat belt turner is a specialized directional adjustment equipment in tile production lines. Utilizing high-strength flat belt conveying system, it achieves 180° precise tile turning, suitable for polishing, sorting, packaging and other critical processes.
◆ Non-marking Turning : Gentle belt-tile contact (10-50N adjustable pressure)
◆ Dual-speed Control : Acceleration-constant speed-deceleration phases (±1mm accuracy)
◆ Auto-centering : Photoelectric sensor + mechanical guide for misalignment correction
◆ Quick Belt Change : <15min replacement (with standard tensioning device)
Parameter | Standard | Large-size |
Tile Size | 800×800mm to 1200×2400mm | 1200×2400mm to 1600×3200mm |
Max Load | 80kg/m² | 120kg/m² |
Turning Cycle | 6-15s adjustable | 8-20s adjustable |
Belt Speed | 0.5-2m/s | 0.3-1.5m/s |
Motor Power | 4kW | 5.5kW |
40% less tile breakage vs roller-type turners
Compatible with vision inspection systems (optional QR code reader)
Modular design allows dual-belt synchronous turning system
◆ Anti-static Belt : Surface resistance 10⁶-10⁹Ω (for high-gloss tiles)
◆ Cleaning System : Brush + vacuum cleaner integration
◆ Energy-saving Mode : <0.5kW standby power (auto start/stop)
Note : Custom belt materials available (food-grade silicone/wear-resistant PU)
